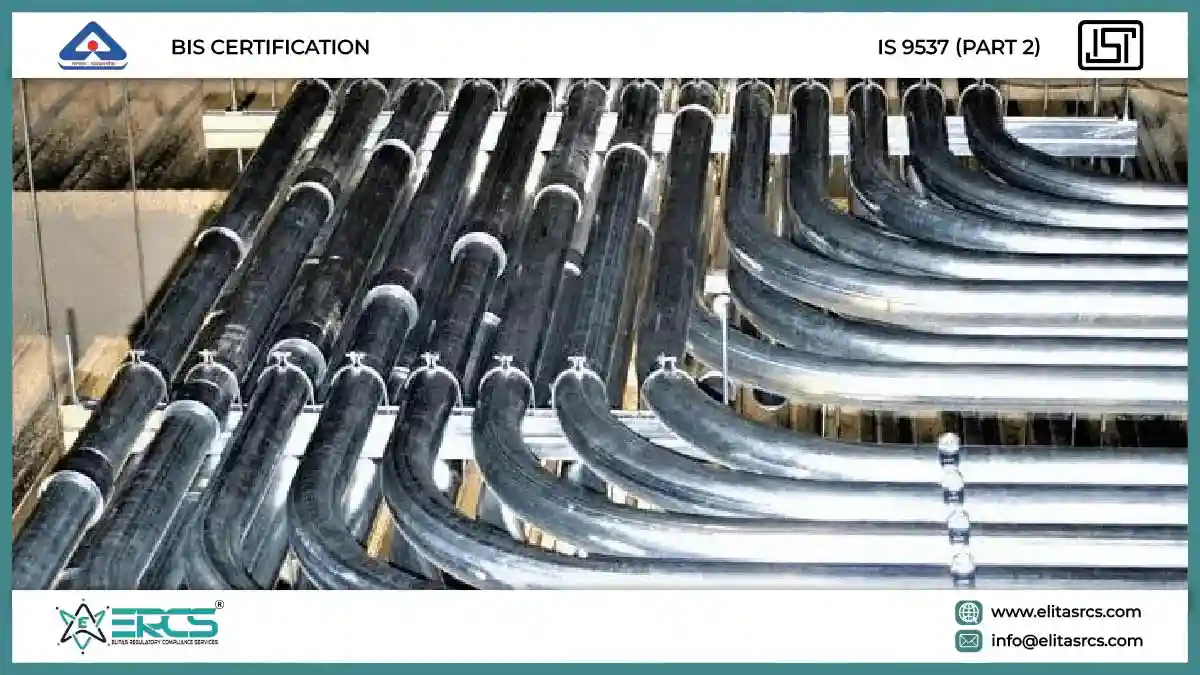

BIS CERTIFICATION FOR CONDUITS FOR ELECTRICAL INSTALLATIONS - RIGID STEEL CONDUITS IS 9537 (Part 2)

GET BIS CERTIFICATION FOR CONDUITS FOR ELECTRICAL INSTALLATIONS- RIGID STEEL CONDUITS IS 9537 (Part 2) : 1981

A conduit is a tube used for protection and routing electrical wiring mostly in building structure. Conduits are installed at site by the electrician.

Electrical conduit can be made up of several different types of materials such as metal, plastic, fiber or fired clay. Conduits are further classified as rigid or flexible. Made of noncombustible material, steel conduit protects against fire and explosions. For any place in a building that fire could reach, steel conduit is easy to install, provides additional protection against fire damage, and will not burn. Steel conduit saves  from the cost of installation throughout the life of a building. Recognizing the durability of steel pipes is a modern and positive trend. Steel piping has been an industry favorite for a century due to its superior protection against physical damage. But as we face more natural and man-made disasters, building stronger infrastructure is increasingly important – and steel conduit is the perfect electrical track because it allows the track to be removed, altered, updated and reused, which is generally not possible with cable methods.

BIS is a statutory institution established under the Bureau of Indian Standards Act,1986  to promote harmonious development of the activities of standardization, marking and quality certification of goods and attending to connected matters in the country.

Conduits for electrical installations - Rigid steel conduits product has been specified in IS 9537 (Part 2) : 1981  by Bureau of Indian Standards.

SCOPE :

This specification covers the requirements and methods of test of threaded/ threadable plain rigid steel conduits.

ANY OTHER ASPECT REQUIRED AS PER THE STANDARD :

Threaded/ Threadable plain rigid steel conduits

MECHANICAL STRESS :

Very Light/Light/Medium/Heavy/Very Heavy

NOMINAL SIZES :

16mm/20mm/25mm/32mm/40mm/50mm/63mm

CLASS OF PROTECTION :

·       Conduits with low protection

·       Conduits with medium protection

·       Conduits with high protection

·       Conduits with high protection on the outside and low protection inside

·       Conduits with medium protection outside and low protection inside

·       Conduits with high protection outside and medium protection inside.

TESTING PARAMETERS :

·       Construction

·       Marking

·       Durability of Marking

·       Dimensions

·       Uniformity of Wall thickness

·       Screw Threads

·       Bending Test

·       Compression Test

·       External Influences

POSSIBLE TESTS IN A DAY :

(i)     Marking as per Cl. 6
(ii)    Dimensions as per Cl. 7
(iii)   Construction as per Cl. 8
(iv)   Bending Test as per Cl. 9.2
(v)    Compression Test Cl. 9.3
(vi)   External Influences Cl. 13

BIS CERTIFICATION IN INDIA

It is always better to consult with experience team such as ERCS Pvt. Ltd. for smooth certification process.

For more information, please feel free to contact us at info@elitasrcs.com or call at +91-9076611770 / +91-9076611766.
